Zotac GeForce RTX 5060 Ti 16GB Twin Edge OC

Dimensions: manufacturer-documented

Length, height and thickness come from the two linked sources, which agree. Both are copies of the manufacturer’s own specification sheet published at two addresses, so they are one manufacturer document, not two independent sources. They were not read from the render.

• ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC (ZT-B50620H-10M) specification sheet (PDF, hosted by reichelt) Manufacturer
  States length, height, thickness. Checked 5 September 2026. Source quote: “Length: 220.5 mm (8.7 in)”; “Height: 120.25 mm (4.7 in)”; “Width: 2 slot (41.6 mm) (1.6 in)”
• ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC (ZT-B50620H-10M) specification sheet (PDF, hosted by Advantech) Manufacturer
  States length, height, thickness. Checked 16 September 2026. Source quote: “Length: 220.5 mm (8.7 in)”; “Height: 120.25 mm (4.7 in)”; “Width: 2 slot (41.6 mm) (1.6 in)”

Both sources are the same ZOTAC specification sheet hosted at two addresses (reichelt and Advantech); no independent retailer confirmation was found.

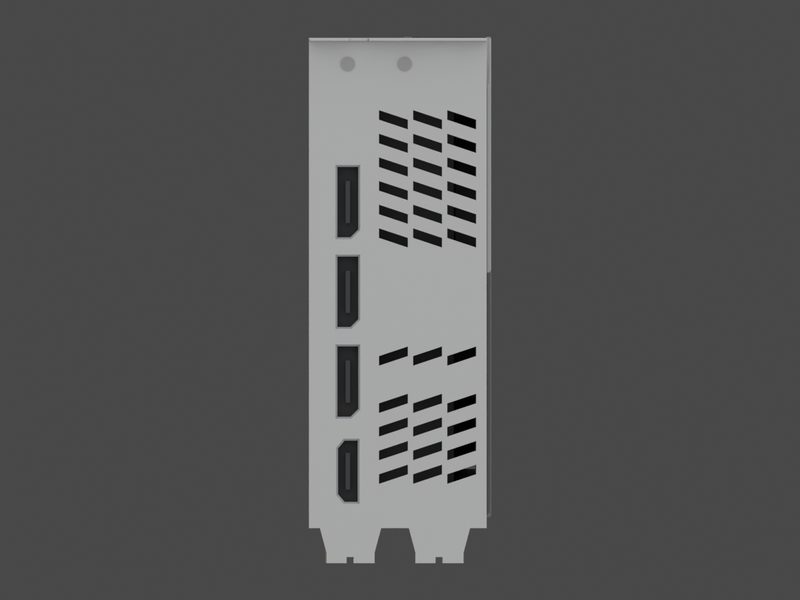

We read the documented length as running from the inner face of the mounting bracket to the far end of the card; that is our reading, not a manufacturer statement. In our model the bracket plate and its screw tab sit outside that length (our modelling convention). Our model’s bracket and screw tab add about 10 mm to the length (approximate).

Positions: estimated, not measured

The power socket and circuit board (PCB) positions below are estimates. Each is shown with its uncertainty in millimetres (±mm).

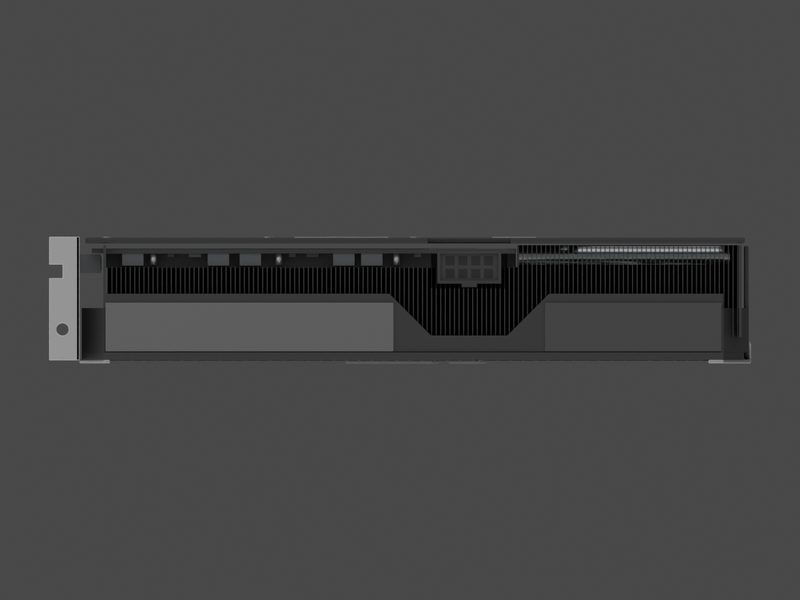

• 8-pin PCIe power socket: position and facing direction: Estimated, ±4 mm overall (±3 mm along the length, ±4 mm in height, ±4 mm across the thickness). Centre about 127.6 mm from the bracket’s inner face, 114 mm above the PCIe contact edge and 10 mm from the backplate side; it faces the top edge. Estimated from reference images scaled to the documented dimensions.

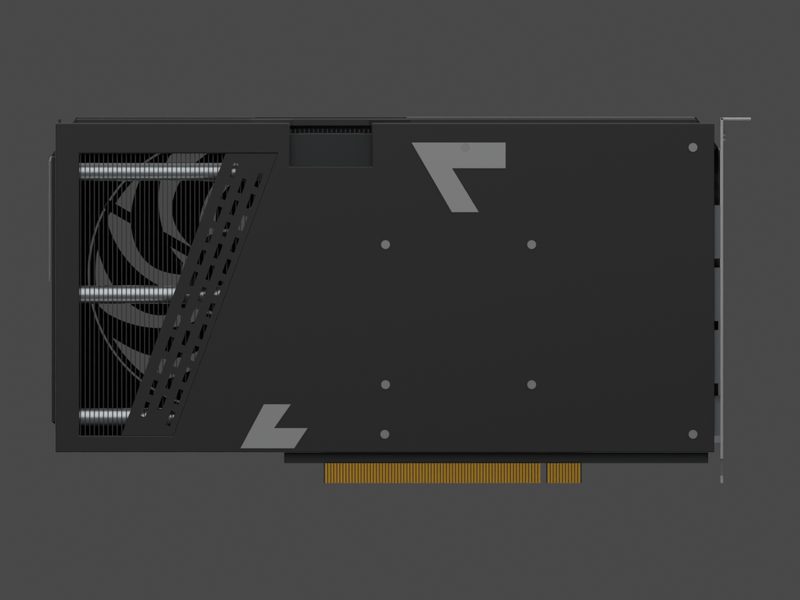

• Circuit board (PCB) mid-plane across the card’s thickness: Estimated, ±1.5 mm: about 4.7 mm from the backplate side. Estimated from reference images scaled to the documented dimensions.

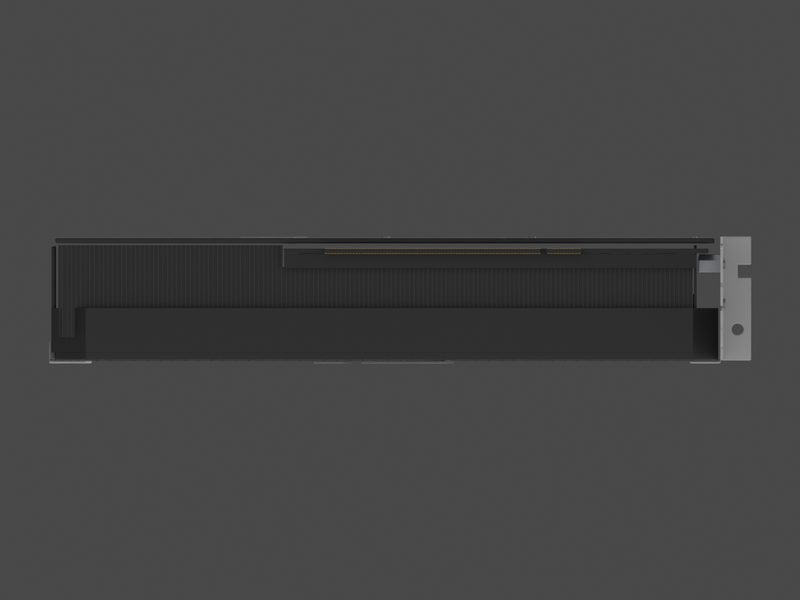

• PCIe edge connector drawn full length (x16 form): Estimated, ±2.5 mm. Estimated by reading a reference image against the documented length. The reference image reads about 82.5 mm against the standard 84.3 mm; the manufacturer sheet states only the x8 electrical link.

PCIe connector: follows the PCI Express standard

The PCIe edge connector’s key is placed 58.19 mm from the bracket’s inner face, following the PCI Express CEM r2.0 standard figures, not measured on this card. PCI Express CEM r2.0 figures 6-2 and 6-4: 59.05 mm from the bracket’s outer face to the key centre, minus the 0.86 mm bracket plate.

Edge connector form: drawn full length (x16 form) from a reading of a reference image, as estimated above; it was not measured. No source found states the physical edge; the ZOTAC sheet gives x8, the electrical link.

Appearance: approximate

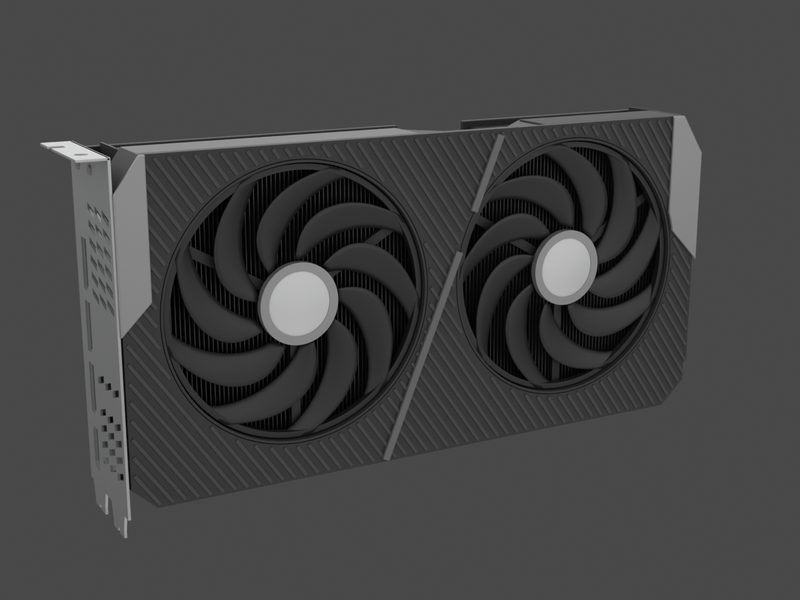

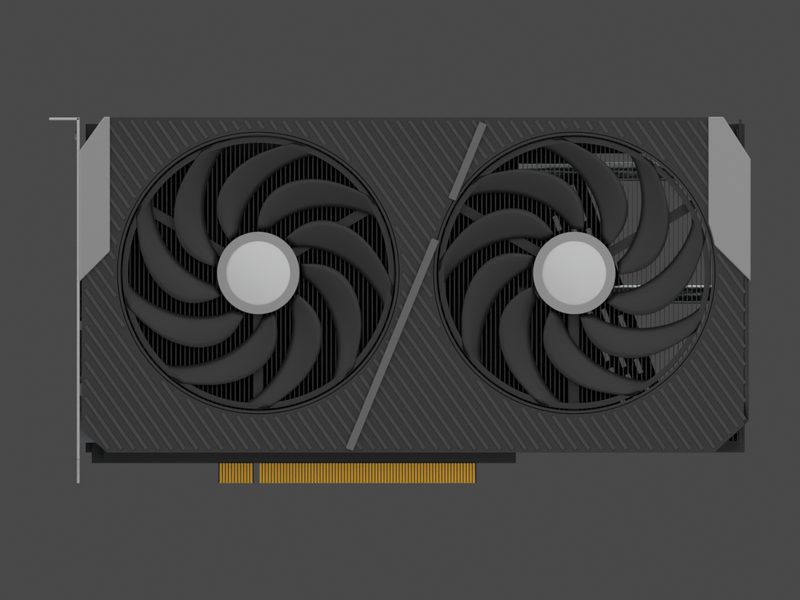

• Colours, fan sizes, blade counts, heatsink fins and surface details are approximations drawn from reference images, not specifications.
• No brand logos or text were modelled.
• The number of heatpipes drawn is an appearance estimate.

Nothing was measured on a physical card. This model is not a manufacturer drawing, not a product photograph and not proof of fit.

Automated check: the model’s outer body matches the documented dimensions within 1 mm (automated check of our model file). Checked 17 September 2026. Owner-approved for publication on 17 September 2026. Model file 0.98 MB, 29,752 triangles.
