Graphics card

MSI GeForce RTX 5070 Ventus 2X OC

Manufacturer model: RTX 5070 12G VENTUS 2X OC, RTX-5070-12G-VENTUS-2X-OC

Add to current build

Keep your other parts. Choose a replacement if this slot is already filled.

Approximate 3D model

Our own approximate model of this card, built to the manufacturer-documented dimensions below. It is not a manufacturer drawing or a product photograph, and it does not check whether the card will fit in your case.

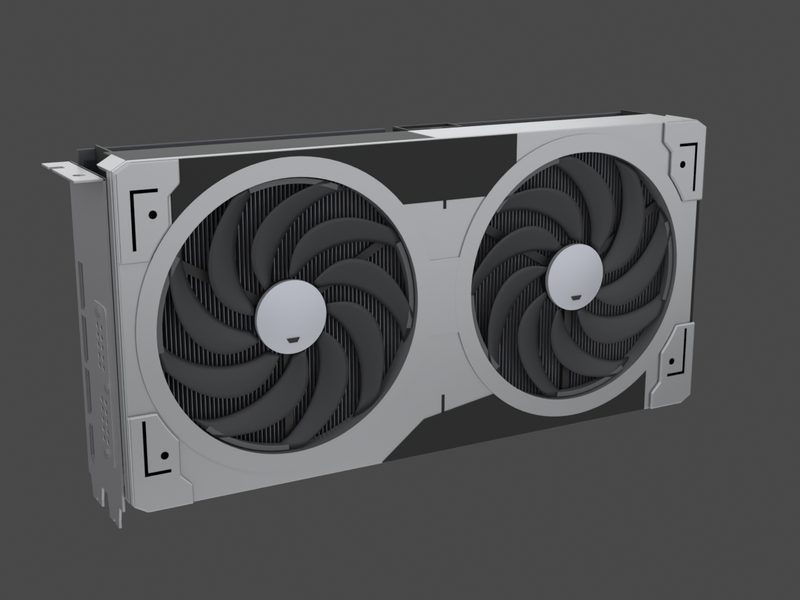

Three-quarter view of our approximate 3D model of the MSI GeForce RTX 5070 Ventus 2X OC (render of our approximate model, not a product photograph)
Render of our approximate model. Colours, fan details and surface details are approximations drawn from reference images. No brand logos or text were modelled.

Length
236 mm
Height
126 mm
Thickness
50 mm

Manufacturer-documented dimensions; the sources are listed under “What this model is based on”. The model does not check physical fit, connector clearance or cooling; see the compatibility information below.

What this model is based on

Dimensions: manufacturer-documented

Length, height and thickness come from the linked documents: at least two agreeing sources, including at least one from the manufacturer. They were not read from the render.

Both manufacturer sources are the same MSI datasheet, hosted by reichelt and by Best Buy. Altex repeats the datasheet text; GigaParts states the same triple in inches.

The CAD record uses MSI’s model name G5070-12V2C. The MSI datasheet is titled “MSI GeForce RTX 5070 12G VENTUS 2X OC (G5070-12V2C)”, which binds it to the catalogue model RTX 5070 12G VENTUS 2X OC.

We read the documented length as running from the inner face of the mounting bracket to the far end of the card; that is our reading, not a manufacturer statement. In our model the bracket plate and its screw tab sit outside that length (our modelling convention). Our model’s bracket and screw tab add about 10 mm to the length (approximate).

Positions: estimated, not measured

The power socket and circuit board (PCB) positions below are estimates. Each is shown with its uncertainty in millimetres (±mm).

  • 16-pin (12V-2x6) power socket: position and facing direction: Estimated, ±5 mm overall (±2.5 mm along the length, ±2.5 mm in height, ±4 mm across the thickness). Centre about 134.5 mm from the bracket’s inner face, 123.5 mm above the PCIe contact edge and 7 mm from the backplate side; it faces the top edge. Estimated from reference images scaled to the documented dimensions.
  • Circuit board (PCB) mid-plane across the card’s thickness: Estimated, ±2.5 mm: about 2.4 mm from the backplate side. Estimated from reference images scaled to the documented dimensions.

PCIe connector: follows the PCI Express standard

The PCIe edge connector’s key is placed 58.19 mm from the bracket’s inner face, following the PCI Express CEM r2.0 standard figures, not measured on this card. PCI Express CEM r2.0 figures 6-2 and 6-4: 59.05 mm from the bracket’s outer face to the key centre, minus the 0.86 mm bracket plate.

Edge connector form: drawn full length (x16 form) because two retailer listings (LDLC and Microdistri) state a PCI Express 5.0 x16 interface; MSI’s datasheet says only “PCI Express Gen 5”. It was not measured.

Appearance: approximate

  • Colours, fan sizes, blade counts, heatsink fins and surface details are approximations drawn from reference images, not specifications.
  • No brand logos or text were modelled.
  • The number of heatpipes drawn is an appearance estimate.

Nothing was measured on a physical card. This model is not a manufacturer drawing, not a product photograph and not proof of fit.

Automated check: the model’s outer body matches the documented dimensions within 1 mm (automated check of our model file). Checked 17 September 2026. Owner-approved for publication on 17 September 2026. Model file 1.31 MB, 35,960 triangles.

Still renders from five sides

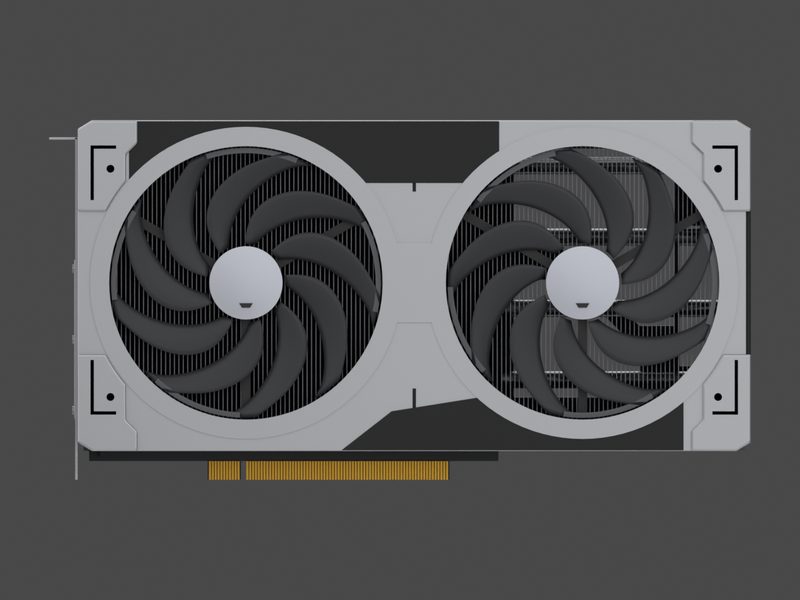

  • Fan side of our approximate 3D model of the MSI GeForce RTX 5070 Ventus 2X OC (render of our approximate model, not a product photograph)
    Fan side

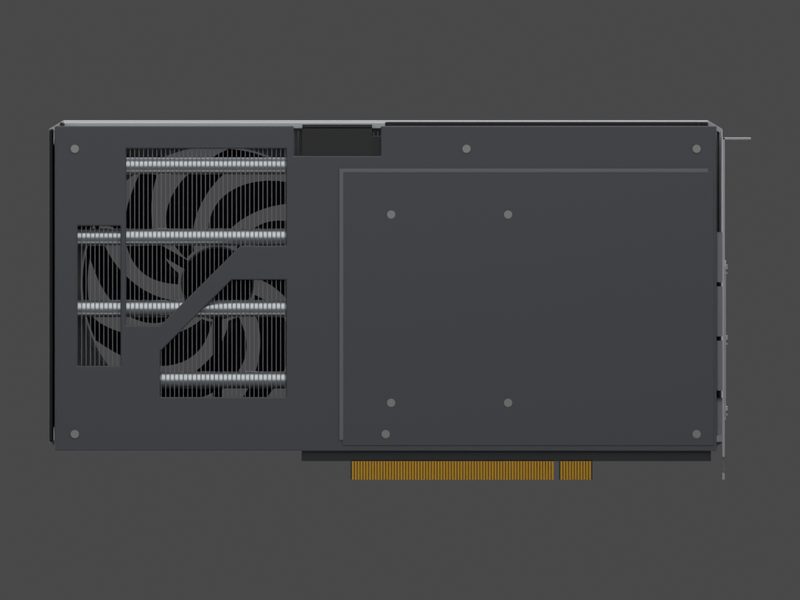

  • Backplate side of our approximate 3D model of the MSI GeForce RTX 5070 Ventus 2X OC (render of our approximate model, not a product photograph)
    Backplate side

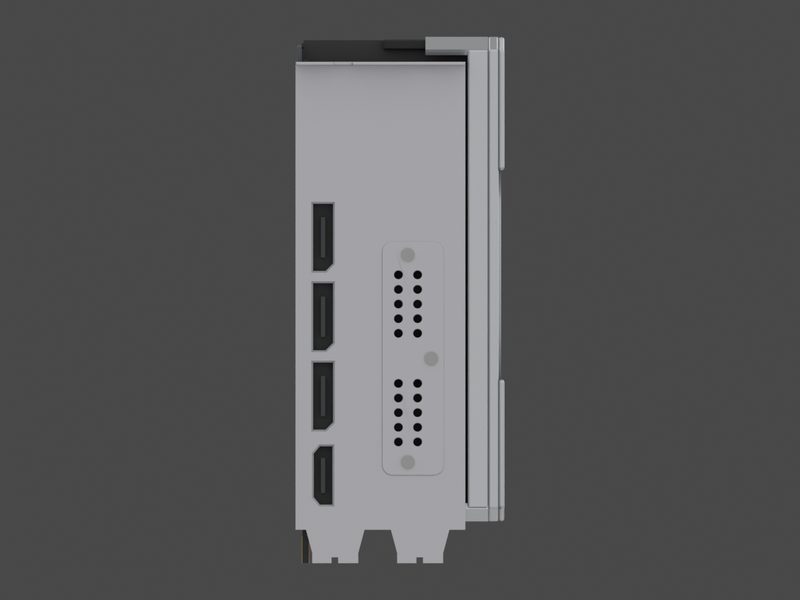

  • Output bracket end of our approximate 3D model of the MSI GeForce RTX 5070 Ventus 2X OC (render of our approximate model, not a product photograph)
    Output bracket end

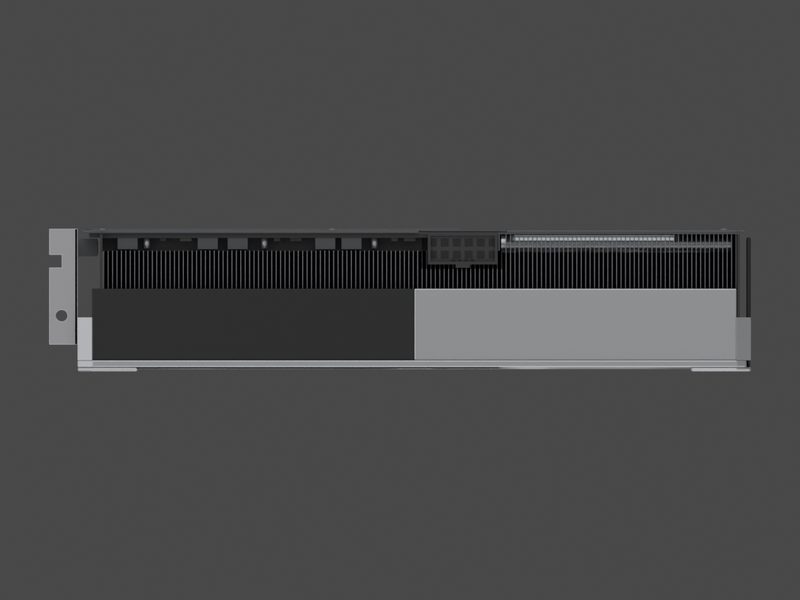

  • Top edge with the power socket of our approximate 3D model of the MSI GeForce RTX 5070 Ventus 2X OC (render of our approximate model, not a product photograph)
    Top edge with the power socket

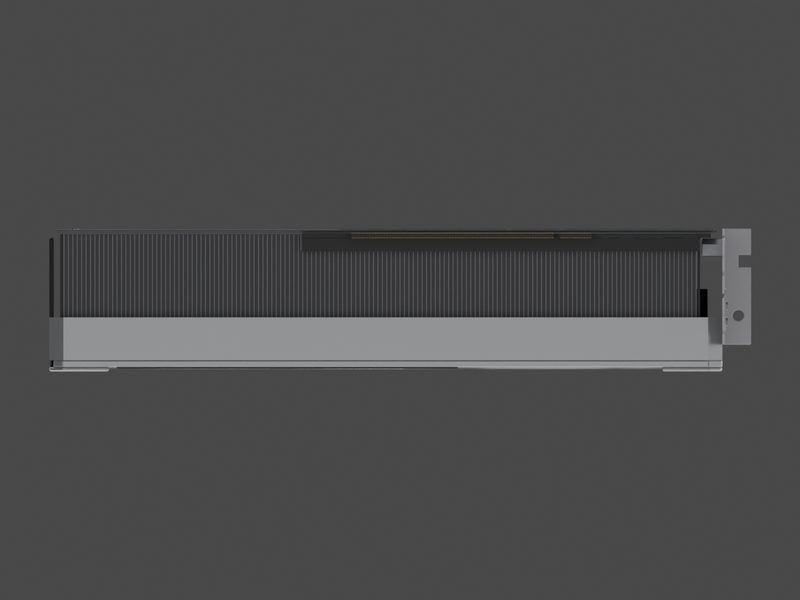

  • Lower edge with the PCIe connector of our approximate 3D model of the MSI GeForce RTX 5070 Ventus 2X OC (render of our approximate model, not a product photograph)
    Lower edge with the PCIe connector

Reviewed product specifications

Verified product facts show their review dates below. These facts do not establish compatibility with your selected parts.

Graphics memory
12 GB
MSI source · MSI source
Graphics memory type
GDDR7
MSI source · MSI source
Graphics card length
236.0 mm
AIRIG pipeline verified 2026-09-14 from the quoted source.
Source quote: “236 x 126 x 50 mm”
MSI source
Graphics card height
126.0 mm
AIRIG pipeline verified 2026-09-14 from the quoted source.
Source quote: “236 x 126 x 50 mm”
MSI source
Graphics card thickness
50.0 mm
AIRIG pipeline verified 2026-09-14 from the quoted source.
Source quote: “236 x 126 x 50 mm”
MSI source
Specification limits and missing checks
  • Graphics memory capacity does not establish performance, power requirements, slot allocation or physical fit.
  • On-card memory type is separate from system RAM compatibility.
  • Nominal card length alone does not establish installed fit, connector clearance, radiator interference or cable bend space.
  • Manufacturer dimension terminology varies; nominal height alone does not establish installed clearance.
  • Nominal thickness does not establish occupied slot count, airflow space or clearance for adjacent devices.

Exact package contents, hardware revisions and complete specifications still need review. Product photographs are not yet available on this page.

Recorded delivered prices

Mainland England and Wales · New · VAT included
Single-item observations. Confirm your postcode and final total at the retailer.

Delivery conditions and exclusions

One new item to a standard home address, paid in full without membership or vouchers. Excludes Scotland, Northern Ireland, islands and PO Boxes. Prices include VAT, delivery and disclosed mandatory fees. Retailer pages and published delivery policies provide these observations; checkout has not been tested.

Current delivered prices require a freshness check. Enable JavaScript to load eligible observations, or check the retailer sources below.

Observations are withdrawn within 24 hours unless rechecked. Coverage is limited to the retailers shown; this is not a claim to find the cheapest seller in the entire UK.

Historical retailer observations

Historical research, sorted by retailer. Item prices include VAT where recorded; delivery was not recorded. These are not live offers or a delivered-price ranking. Verify model, stock and delivery at the retailer.

RetailerRecorded item priceRecorded stockObservedSource
Box£629.89unavailable2026-09-05T21:47:00+01:00Check retailer
Overclockers£728.99in stock2026-09-05T21:47:00+01:00Check retailer
Scan£729.98in stock2026-09-05T21:47:00+01:00Check retailer

Compatibility information

Detailed compatibility fields have not yet been verified for this part.

Physical fit, connector clearance, cooling and installation space are not checked. A matching socket or several PCIe slots cannot establish physical fit. See supported checks and catalogue coverage.
