Gigabyte GeForce RTX 5070 GAMING OC 12G

Dimensions: manufacturer-documented

Length, height and thickness come from the linked documents: at least two agreeing sources, including at least one from the manufacturer. They were not read from the render.

• GIGABYTE specification page Manufacturer
  States length, height, thickness. Checked 16 September 2026. Source quote: “Card size L=327 W=132 H=56 mm”
• Icecat product leaflet (PDF hosted by IT Workshop) Product-data leaflet
  States length, height, thickness. Checked 6 September 2026. Source quote: “Length 327 mm”; “Height 132 mm”; “Depth 56 mm”
• Icecat product leaflet (PDF hosted by Interdiscount) Product-data leaflet
  States length, height, thickness. Checked 6 September 2026. Source quote: “Länge (mm) 327 mm”; “Höhe 132 mm”; “Tiefe 56 mm”
• Newegg product listing Retailer
  States length, height, thickness. Checked 16 September 2026. Source quote: “Card Dimensions (L x H) 327 x 132 x 56 mm”

Only the GIGABYTE page is a manufacturer source; it labels the triple L, W and H, where W is the card height and H its thickness. The IT Workshop and Interdiscount PDFs are one Icecat dataset on two hosts.

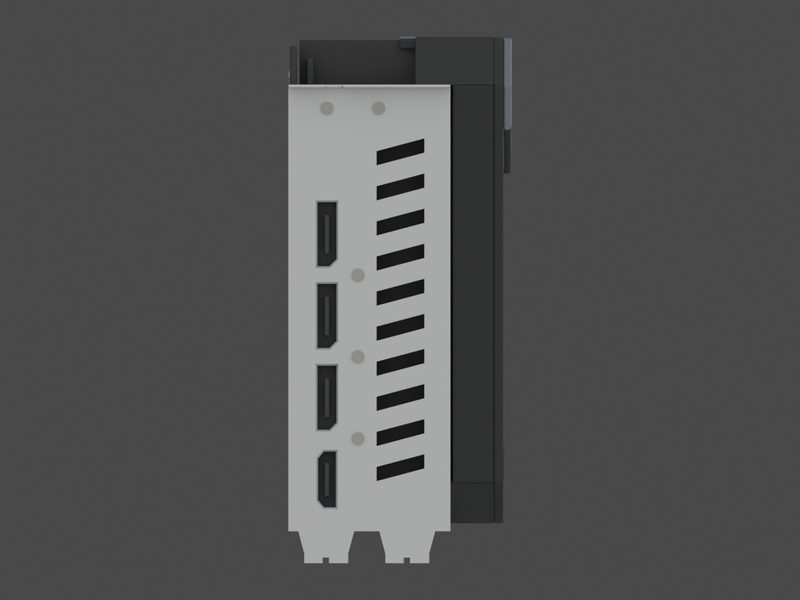

We read the documented length as running from the inner face of the mounting bracket to the far end of the card; that is our reading, not a manufacturer statement. In our model the bracket plate and its screw tab sit outside that length (our modelling convention). Our model’s bracket and screw tab add about 10 mm to the length (approximate).

Positions: estimated, not measured

The power socket and circuit board (PCB) positions below are estimates. Each is shown with its uncertainty in millimetres (±mm).

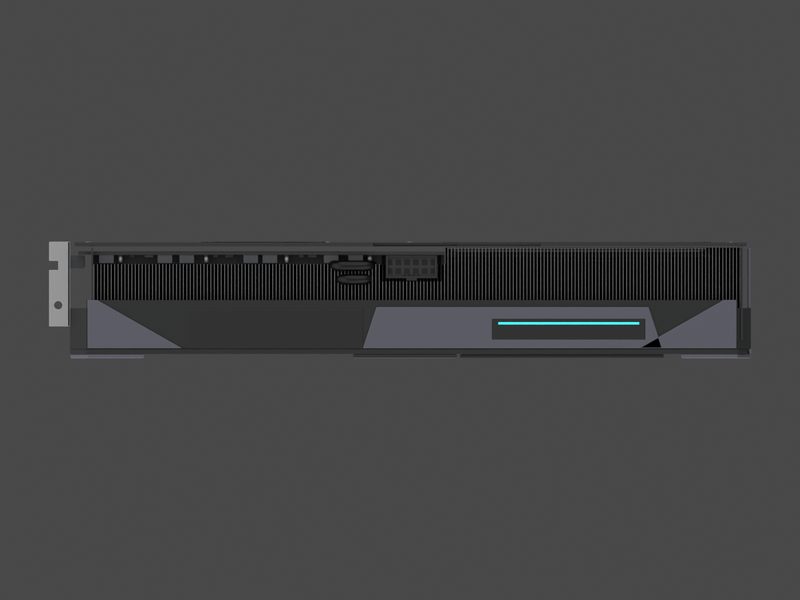

• 16-pin (12V-2x6) power socket: position and facing direction: Estimated, ±5 mm overall (±5 mm along the length, ±4 mm in height, ±2 mm across the thickness). Centre about 163.6 mm from the bracket’s inner face, 124 mm above the PCIe contact edge and 12 mm from the backplate side; it faces the top edge. Estimated from reference images scaled to the documented dimensions.
• Circuit board (PCB) mid-plane across the card’s thickness: Estimated, ±1.5 mm: about 5.5 mm from the backplate side. Estimated from reference images scaled to the documented dimensions.

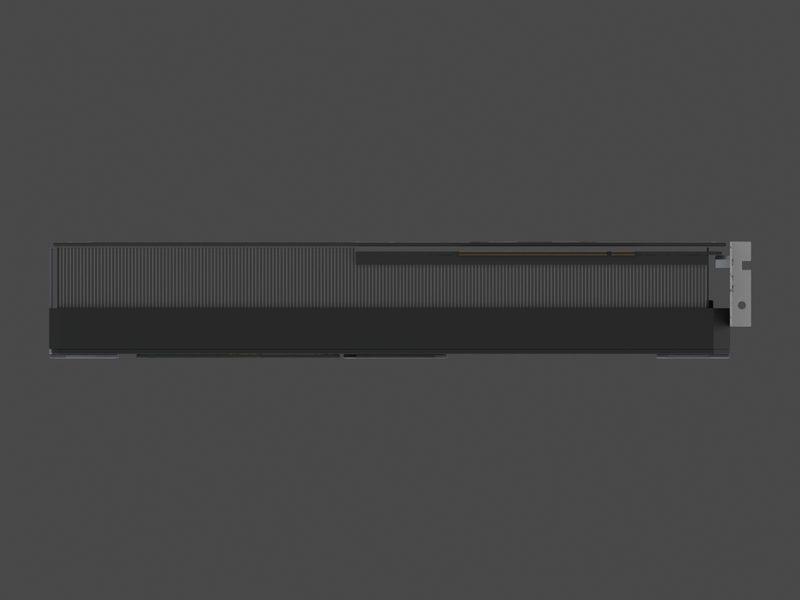

PCIe connector: follows the PCI Express standard

The PCIe edge connector’s key is placed 58.19 mm from the bracket’s inner face, following the PCI Express CEM r2.0 standard figures, not measured on this card. PCI Express CEM r2.0 figures 6-2 and 6-4: 59.05 mm from the bracket’s outer face to the key centre, minus the 0.86 mm bracket plate.

Edge connector form: drawn full length (x16 form) because the Icecat product leaflet (one dataset on two shop sites) states a PCI Express x16 interface. It was not measured.

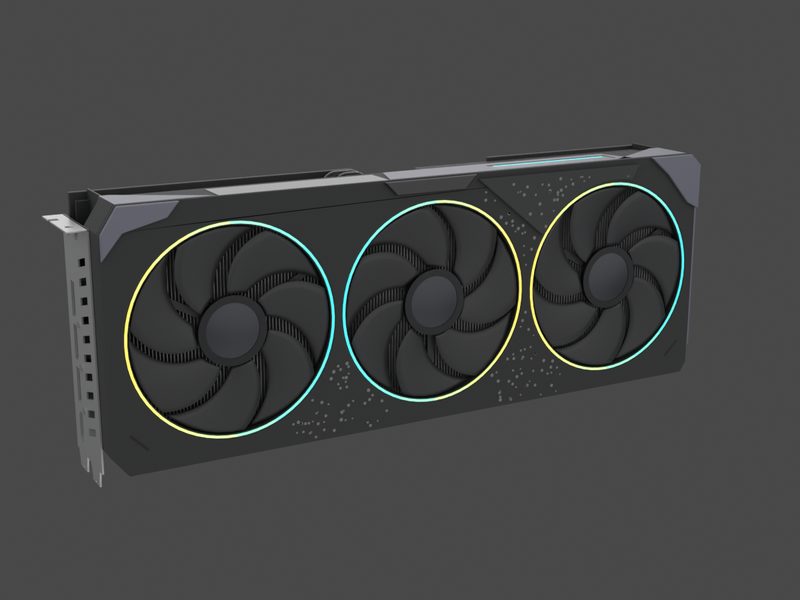

Appearance: approximate

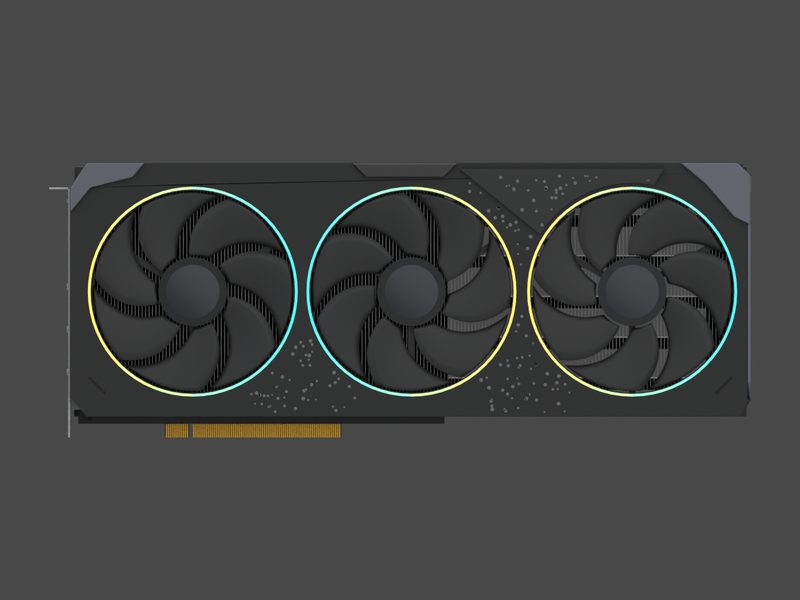

• Colours, fan sizes, blade counts, heatsink fins and surface details are approximations drawn from reference images, not specifications.
• No brand logos or text were modelled.
• Two heatpipe loops beside the power socket are nominal.

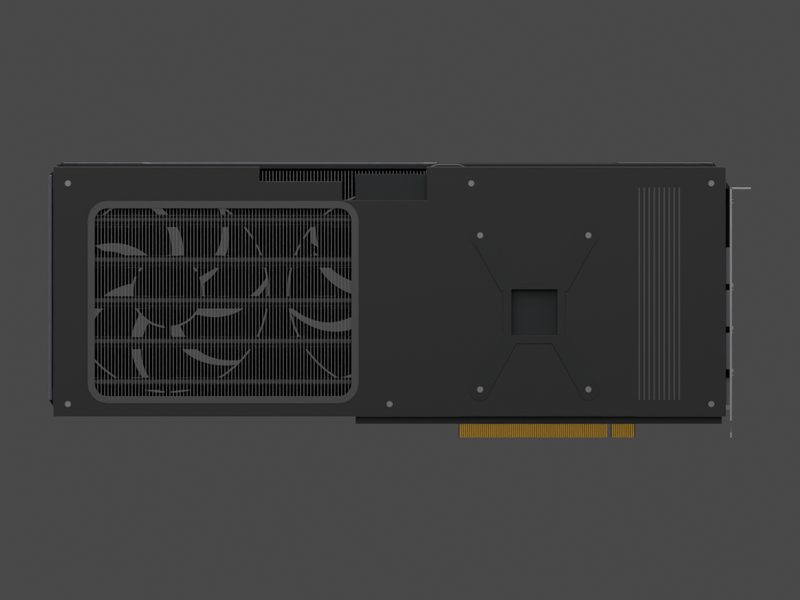

• Five heatpipes behind the backplate window are nominal; the real count is unknown.

Nothing was measured on a physical card. This model is not a manufacturer drawing, not a product photograph and not proof of fit.

Automated check: the model’s outer body matches the documented dimensions within 1 mm (automated check of our model file). Checked 17 September 2026. Owner-approved for publication on 17 September 2026. Model file 1.52 MB, 43,102 triangles.
