ASUS Dual GeForce RTX 5060 Ti O16G

Dimensions: manufacturer-documented

Length, height and thickness come from the linked documents: at least two agreeing sources, including at least one from the manufacturer. They were not read from the render.

• ASUS US technical specification page Manufacturer
  States length, height, thickness. Checked 16 September 2026. Source quote: “Dimensions 229 x 120 x 50mm”
• ASUS UK technical specification page Manufacturer
  States length, height, thickness. Checked 16 September 2026. Source quote: “Dimensions 229 x 120 x 50mm”
• ASUS DUAL-RTX5060TI-O16G datasheet (PDF, ASUS product sheet hosted by Bechtle) Manufacturer
  States length, height, thickness. Checked 5 September 2026. Source quote: “Dimension ... 229 x 120 x 50 mm”
• ASUS JAPAN press release for the TUF, PRIME and DUAL RTX 5060 Ti 16GB cards (16 Apr 2025, published by ASUS JAPAN on PR TIMES) Manufacturer
  States length, height, thickness. Checked 16 September 2026. Source quote: “型番 DUAL-RTX5060TI-O16G ... 本体サイズ （W×H×D） 229 x 120 x 50 mm”
• Newegg product listing Retailer
  States length, height, thickness. Checked 16 September 2026. Source quote: “Max GPU Length 229 mm”; “Card Dimensions (L x H) 229 x 120 x 50 mm”

The ASUS datasheet PDF is hosted by Bechtle; ASUS JAPAN’s press release labels the same triple width × height × depth.

We read the documented length as running from the inner face of the mounting bracket to the far end of the card; that is our reading, not a manufacturer statement. In our model the bracket plate and its screw tab sit outside that length (our modelling convention). Our model’s bracket and screw tab add about 10 mm to the length (approximate).

Positions: estimated, not measured

The power socket and circuit board (PCB) positions below are estimates. Each is shown with its uncertainty in millimetres (±mm).

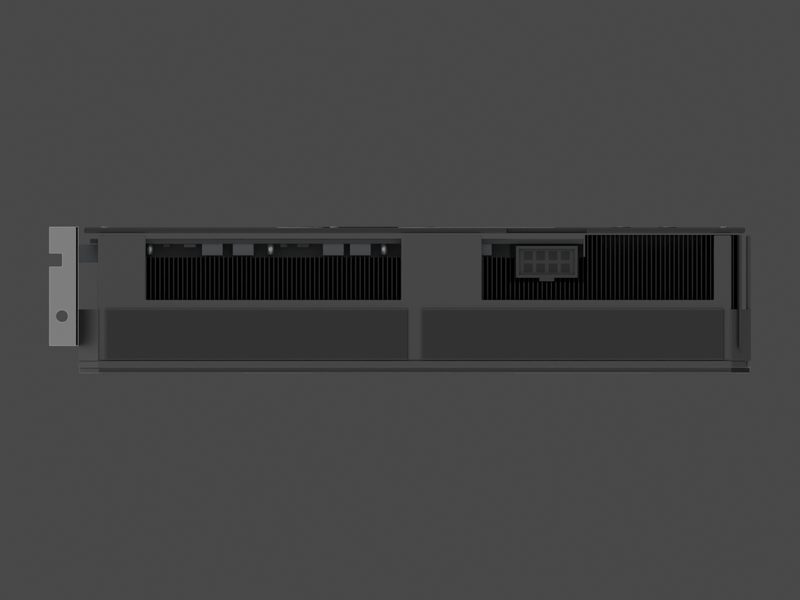

• 8-pin PCIe power socket: position and facing direction: Estimated, ±5 mm overall (±4 mm along the length, ±4 mm in height, ±3 mm across the thickness). Centre about 159.2 mm from the bracket’s inner face, 116 mm above the PCIe contact edge and 12 mm from the backplate side; it faces the top edge. Estimated from reference images scaled to the documented dimensions.

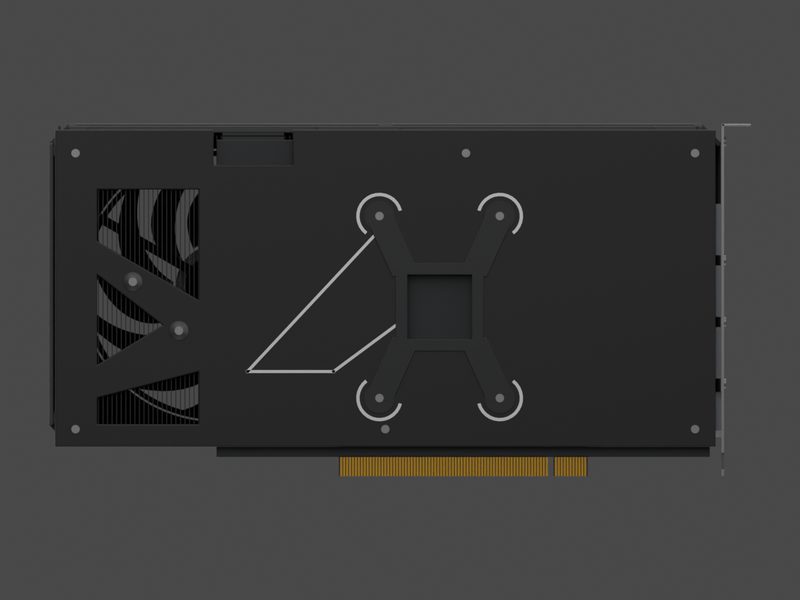

• Circuit board (PCB) mid-plane across the card’s thickness: Estimated, ±2 mm: about 5 mm from the backplate side. Estimated from reference images scaled to the documented dimensions.

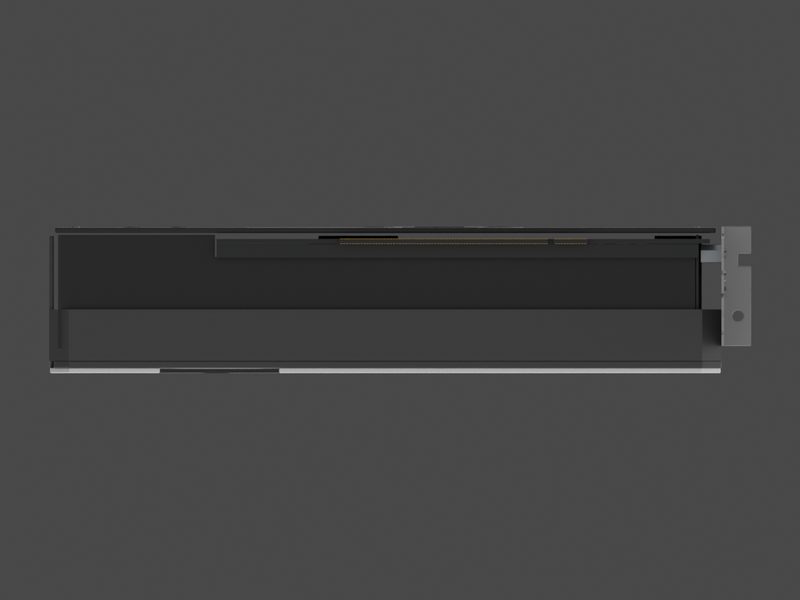

PCIe connector: follows the PCI Express standard

The PCIe edge connector’s key is placed 58.19 mm from the bracket’s inner face, following the PCI Express CEM r2.0 standard figures, not measured on this card. PCI Express CEM r2.0 figures 6-2 and 6-4: 59.05 mm from the bracket’s outer face to the key centre, minus the 0.86 mm bracket plate.

Edge connector form: drawn full length (x16 form), which is weakly supported. ASUS states only “PCI Express 5.0”. Two retailer listings (LDLC and Materiel.net, which belong to one retail group and may share a data feed) state an x16 interface, while Newegg lists x8, the electrical link. The physical edge length was not confirmed by ASUS and was not measured.

Appearance: approximate

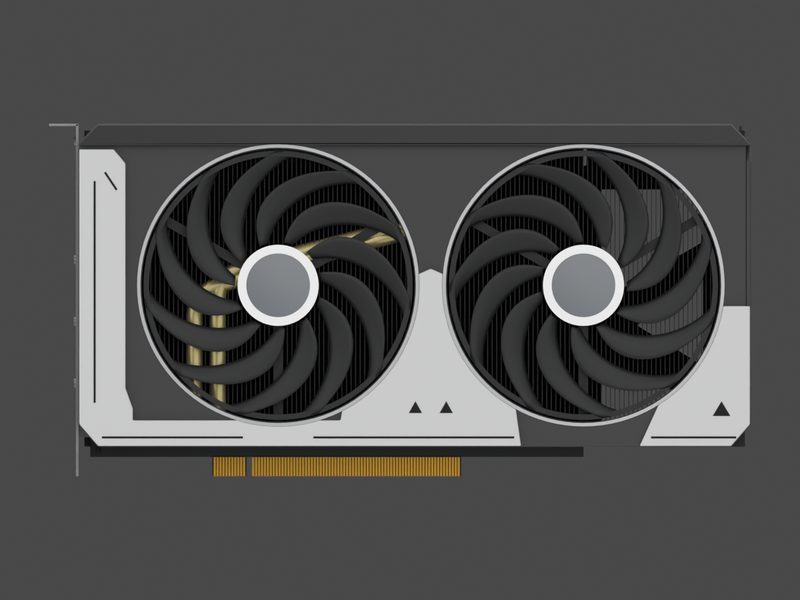

• Colours, fan sizes, blade counts, heatsink fins and surface details are approximations drawn from reference images, not specifications.
• No brand logos or text were modelled.

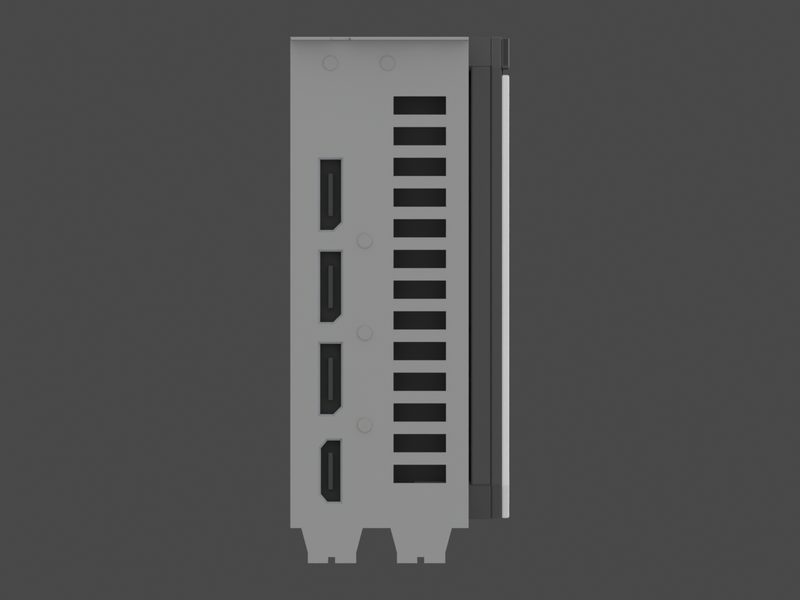

• The order of the display outputs on the bracket is a guess (HDMI drawn first); only the number of outputs is documented.
• Two heatpipe bends behind the first fan are nominal; the real heatpipe count is unknown.

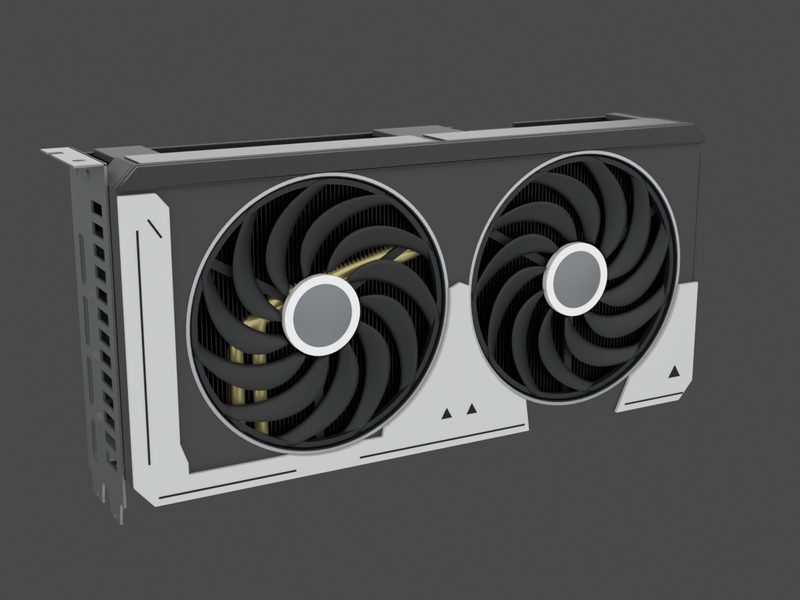

Nothing was measured on a physical card. This model is not a manufacturer drawing, not a product photograph and not proof of fit.

Automated check: the model’s outer body matches the documented dimensions within 1 mm (automated check of our model file). Checked 17 September 2026. Owner-approved for publication on 17 September 2026. Model file 1.12 MB, 35,420 triangles.
